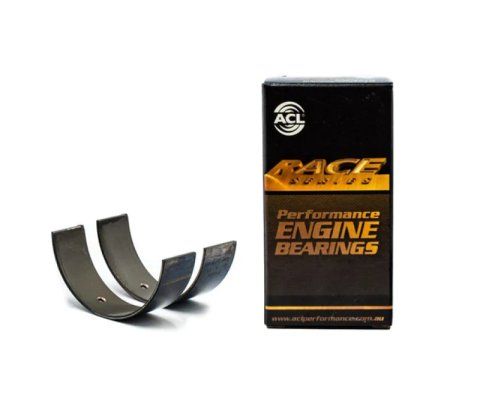

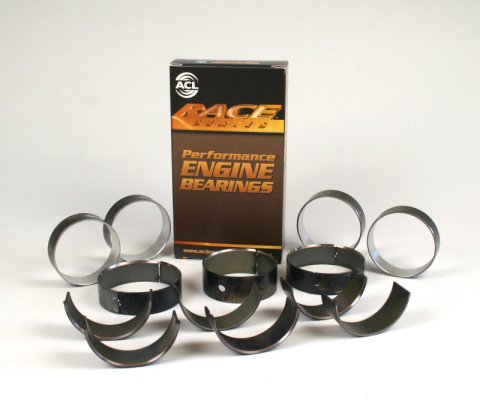

ACL BMW S85B50 STD Size Performance Rod Bearing Set
ACL BMW S85B50 STD Size Performance Rod Bearing Set
A$618.39
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ACL Performance offers Race Series rod bearing sets for a wide range of vehicles. These high performance tri-metal engine bearings are designed to withstand higher RPM conditions. They feature a high-strength overlay plate with reduced thickness for improved fatigue properties. Select the crankshaft undersize and quantity recommended for your year/make and engine application.
Additional details:
* Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* Increased crush for improved bearing retention
* Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
* Increased eccentricity to compensate for bore distortion at high RPM and to assist in the formation of hydrodynamic oil films
* 3/4 in. grooved main bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
* Tight consistent wall tolerances to help you maintain consistent clearances
* Enlarged ID chamfers on bearing edges (where required) to accommodate large fillet radius on performance crankshafts
Product Overview
ACL BMW S85B50 STD Size Performance Rod Bearing Set
Product Details
| Description: | BMW S85B50 4999cc V10 DOHC 4v |
|---|---|
| Grade Type: | Performance |
| Max Wall: | 0.0787 |
| Outside Diameter: | 2.2047 |
| Part Number: | acl10B1580H-STD |
| Shaft Diameter: | 2.0463 |
| Width: | 15.9 |
Part Type
Rod Bearings
Specifications
- Product Attributes - UPC
- 9315726462843
- Product Attributes - Brand
- ACL Race Series Performance Engine Bearings
- Product Attributes - Quantity
- Sold as a set of 10.
- Product Attributes - Part Type
- Rod Bearings
- Product Attributes - Product Line
- ACL Performance Race Series Rod Bearing Sets
- Product Attributes - Bearing Usage
- Performance
- Product Attributes - Dowel Pin Hole
- Yes
- Product Attributes - Narrow Bearing
- No
- Product Attributes - Bearing Material
- Tri-metal copper-lead alloy
- Product Attributes - Manufacturer's Part Number
- 10B1580H-STD
- Product Attributes - Engine Crankshaft Undersize (mm)
- Stock
- Product Attributes - Engine Crankshaft Undersize (in.)
- Stock
Reference Information
| Brand Name/s | Acl |
|---|---|
| StreetFX SKU | acl10B1580H-STD |
| SFX Item ID | 4072494 |
| Supplier Item Code | 4072494 |
| Manufacturer SKU | 10B1580H-STD |
| Manufacturer UPC | 9315726443583 |
| Alternative References | peb-10b1580h-std, S85B50 |
